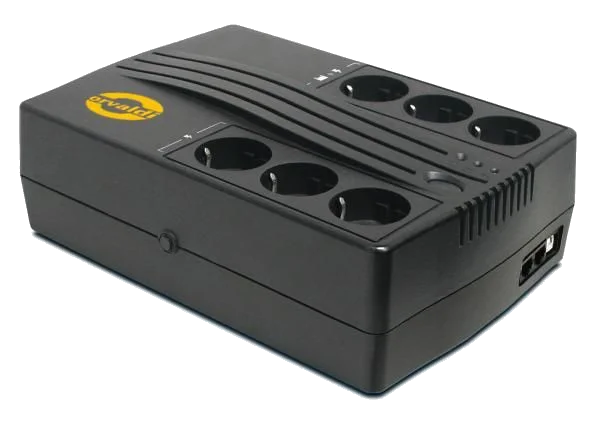

ORVALDI 650-900SP
Energy under control. ORVALDI 650-900SP USB - versatile protection and performance, perfect for offices and homes.
CHARACTERISTICS:
- Microprocessor control.
- Easy, quick, and self-replaceable battery.
- Surge protection.
- Overload and short circuit protection.
- Wide range Boost & Buck AVR stabilization.
- Automatic diagnostics.
- Cold start (battery operation).
- Green Mode function for battery energy saving.
LIST OF APPLICATIONS:
- Household electronics
- Emergency lighting
- Alarm systems
- Telecommunications equipment
- Fiscal devices
- Servers and small networks (passive PFC)
DOWNLOAD:
-
Software - UPSilon2000 -
Product manual - Product card
"HIGH QUALITY" OPTION:
ORVALDI will, in accordance with the terms and conditions of insurance, replace, repair or compensate ORVALDI products and/or connected devices in the event of damage as a result of an electrical surge. The maximum total amount compensated is 5000Euro (five thousand Euros).
Topology
Line-Interactive technology with microprocessor control ensures quick response to power changes and constant protection.
AVR
Advanced voltage regulation AVR allowing stable power supply even in case of large network voltage fluctuations.
LED Indicators
.png)
Intuitive LED indicators inform about the current operating state, network power and battery operation.
.png)

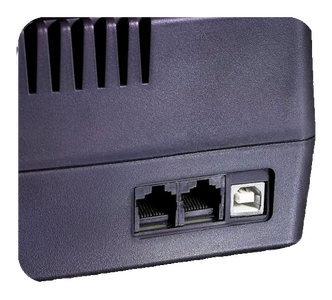

USB Communication
Ability to manage the UPS and monitor its status through a USP port, enhancing the device's funcionality.

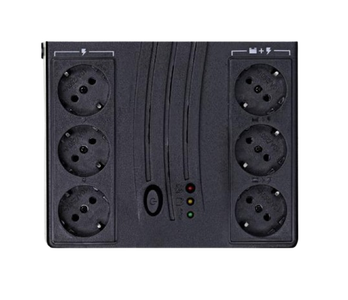

Connection Outlets
Six output sockets including three with battery support and three with surge protection, provide versatile connection possibilities
Ease of Battery Replacement
Quick and Easy battery replacement without the need for tools, minimizing device downtime.
RJ45 Protection
Protection for two RJ45 sockets safeguards network devices from surges and ensures connection stability
Charger
Efficient battery charging to 90% capacity in approximately 8 hours ensures readiness for work in any situation
TECHNICKÉ ÚDAJE:
| MODEL | 650SP | 750SP | 900SP |
| Input | |||
| Permissible voltage range | 220/230/240VAC Nominal -25%+25% | ||
| Frequency | 50Hz | ||
| Output | |||
| The shape of the voltage | PWM - approximate sine wave | ||
| Frequency | 50Hz +/-1Hz | ||
| UPS power | 650VA 390W |
750VA 450W |
900VA 540W |
| Voltage stabilization | +/-3% | ||
| Switch time | 2ms typical; 5ms maximum | ||
| Battery | |||
| Type | Lead-Acid maintenance-free | ||
| DC Bus | 12V/7Ah | 12V/7Ah | 12V/9Ah |
| Pieces | 1 | 1 | 1 |
| Charging time | Typically 8 hours to 90% charge | ||
| Hold time | 6-20 minutes depending on the load power | ||
| Security | |||
| Voltage too high/low. | Outside the AVR operating range - switching to battery operation | ||
| Overload/ short circuit |
Fuse and current limitation both when working from the mains and from the battery | ||
| Low battery | Two-stage protection against too deep discharge | ||
| Noise filtering | EMI/RFI filter | ||
| Other | |||
| Socket type | German or French | ||
| Quantity (pcs) | German/French (6): 3 with sustained bat. and 3 with surge protection | ||
| Dimensions (L*W*H)mm | 260*170*80 | ||
| Weight (kg) | 6 | 6 | 06.май |
| Alarms | |||
| LED | Green - operation from the mains, pulsating yellow - operation from the battery | ||
| Buzzer | Battery operation, low battery charge and overload | ||
| Communication | LACK | USB | |
| Security Fax/Modem/Internet | LACK | RJ45 | |
| Cold Start | It allows you to run the UPS without mains voltage | ||
