Jste tady: Domov - Linkový interaktivní UPS se sinusovým výstupem - ORVALDI Sinus 600-800LCD
série: Linkový interaktivní UPS se sinusovým výstupem
ORVALDI Sinus 600-800LCD
Pure energy, pure possibilities. ORVALDI sinus 600-800 LCD with pure sine wave, designed for advanced requirements.
PRODUCT FEATURES:
- Advanced line-interactive UPS with pure sine wave output.
- Microprocessor control for high reliability.
- Boost and AVR for voltage stabilization.
- Three-stage charging optimizes battery performance.
- Auto-restart when AC power returns.
- Built-in USB communication port and RJ-45 for LAN and phone protection.
LIST OF APPLICATIONS:
- Household electronics
- Emergency lighting
- Alarm systems
- Telecommunications equipment
- Fiscal devices
- Servers and small networks (passive PFC)
- Central heating pumps
- Fireplace pumps
DOWNLOAD:
Software - ViewPower
User Manual"HIGH QUALITY" OPTION:
ORVALDI will, in accordance with the terms and conditions of insurance, replace, repair or compensate ORVALDI products and/or connected devices in the event of damage as a result of an electrical surge. The maximum total amount compensated is 5000Euro (five thousand Euros).
Topology
Line-Interactive technology with full microprocessor control, provides a pure sine wave in both network and battery mode, ideal for sensitive electronic equipment.
AVR
AVR voltage regulation ensures stable power supply, protecting against voltage spikes and drops.
USB Communication
USB port allows easy management and monitoring of the UPS via software, providing complete control over power supply.

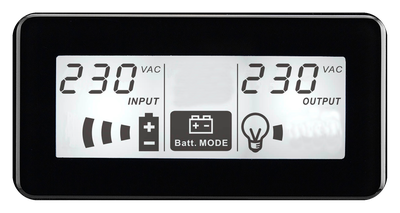

Display
Bright LCD display provides clear information about operating status and power parameters.
Connection Sockets
Four IEC320 C13 sockets allow for flexible and secure connection of various devices.

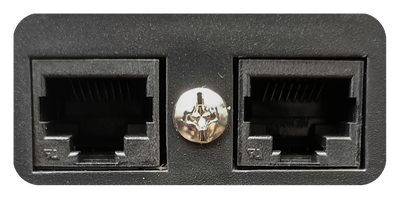

RJ45 Protection
RJ45 protection for LAN and telephone ports enhances protection against surges in communication networks.
Charger
Advanced three-stage battery charging optimizes their lifespan and performance.
TECHNICKÉ ÚDAJE:
| MODEL | ORVALDI Sinus 600 | ORVALDI Sinus 800 |
| Apparent power/active power | 600VA/360W | 800VA/480W |
| INPUT | ||
| Voltage | 220/230/240 VAC | |
| Voltage range | 162-290 V AC | |
| Frequency range | 60/50 HZ (auto sensing) | |
| OUTPUT | ||
| Stabilized voltage (battery mode) | ±10% | |
| Frequency range (battery mode) | 50 Hz ±1 Hz | |
| Voltage shape (battery mode) | Sine Wave (pure sine wave) | |
| Switching time | Typically 2 ms, 6-10 ms max | |
| BATTERY | ||
| Type of battery | 12 V / 7 Ah x 1 | 12 V / 9 Ah x 1 |
| Typical charging time(to 90%) | 4h | |
| PROTECTION | ||
| Full protection | Protection against overload, over-discharge and over-charging of the battery | |
| INDICATORS | ||
| LCD panel | AC, battery mode, load level, battery level, input voltage, output voltage, overload, fault, and Low Battery | |
| ALARM | ||
| Battery operation | Beep every 10 seconds | |
| Low battery (battery mode) | Beep every second | |
| Overload | Beep every 0,5 seconds | |
| Battery replacement (alarm) | Beep every 2 seconds | |
| Error | Continuous beep | |
| PHYSICAL | ||
| Dimension, D x W x H mm | 328 x 100 x 145 | |
| Net weight (kg) | 5.2 | 6.0 |
| ENVIRONMENT | ||
| Humidity | 0-90% RH @ O - 40°C (non-condensing) | |
| Noise level | Less than 40dB | |
| MANAGEMENT | ||
| USB (cable included) | Support for Windows @ 2000/2003/XP/Vista/2008,Windows @ 7, Linux, Unix and MAC (downloadable soft - free) | |
