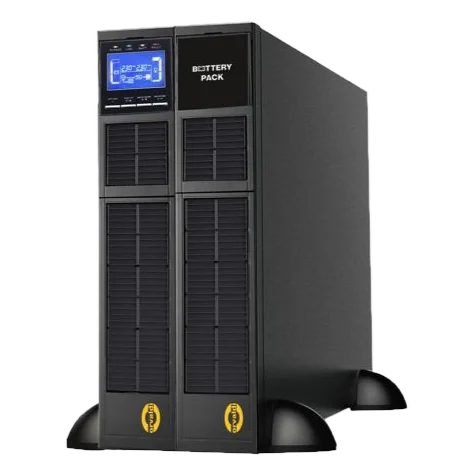

ORVALDI VR6-10K on-line
Expansive Power, Seamless Integration. ORVALDI VR6-10K on-line has a compact 2U design, perfect for scalable setups requiring parallel capability.
PRODUCT FEATURES:
- True Double-Conversion: Ensures reliable protection for sensitive devices.
- Power Factor: Output power factor of 1 for optimal efficiency.
- Wide Voltage Range: Operates with 110-300 V AC.
- User-Friendly: LCD panel for easy monitoring.
- Design: Rack/Tower convertible design.
- Power Factor Correction: Input power factor of 0.99.
- ECO Mode: Energy-saving operation.
- Communication: USB and RS-232, with optional SNMP and AS400 relay cards.
- Parallel Operation: Supports parallel operation of up to 3 units for 30kW total capacity.
LIST OF APPLICATIONS:
- Household electronics
- Emergency lighting
- Alarm systems
- Telecommunications equipment
- Fiscal devices
- Servers and small networks (passive PFC)
- Medical equipment
- Critical loads in data centers
DOWNLOAD:
Software - ViewPower
User Manual- Product card
"HIGH QUALITY" OPTION:
ORVALDI will, in accordance with the terms and conditions of insurance, replace, repair or compensate ORVALDI products and/or connected devices in the event of damage as a result of an electrical surge. The maximum total amount compensated is 5000Euro (five thousand Euros).
Topology
True double-conversion provides continuous and stable power, ideal for high-demand environments.
Display
Easy-to-read LCD interface for immediate access to system status, load levels, and operational settings.
ORVALDI VR6-10K
Flexible connectivity options with hardwire terminal blocks to accommodate various installation needs.
Battery Management
Designed for optional external battery packs, allowing for extended runtime configurations.
Communication
Includes USB and RS-232 ports, with optional SNMP and relay cards for comprehensive system integration.
Network Control and Monitoring Features
Network Control and Monitoring Features
- Enables control and monitoring of multiple UPS units via LAN and INTERNET.
- User-friendly power analysis chart: event statistics, historical data graph export.
- Real-time dynamic UPS data charts (voltage, frequency, load level, battery level).
- Secure OS shutdown and data loss protection in the event of a power failure.
- Warning notifications via audible alarm, broadcast program, mobile messenger, and email.
- Scheduled UPS on/off, battery test, programmable outlet control, and audible alarm control.
- Password protection and remote access management.
- Supports VMware ESX and ESXi.
- Multilingual support: English, German, French, Spanish, Italian, Portuguese, Polish, Czech, Russian, Ukrainian, Turkish, Chinese.
The UPS is equipped with USB and RS232 ports, as well as an SNMP card slot, allowing for easy management and remote monitoring from a computer, enhancing the safety of connected devices.
ViewPower |
ViewPower Pro |
SNMP Web Manager |
.png) |
 |
 |
| Smart management software to monitor and control multiple UPS via LAN and Internet. | Advanced management software to monitor and control multiple UPSs via LAN, Internet, and SNMP card. | SNMP Web Manager is a SNMP web card manager software. Users can search and operate all SNMP devices in the LAN via this interface. Then, user can double click device to open web server monitoring page. |
Efficiency Modes
ECO mode available to minimize power consumption while maintaining critical operations.
Parallel Configuration
Built-in capability for parallel operation up to three units, scaling up to 30kW to support growing power needs.
TECHNICKÉ ÚDAJE:
| Model | ORVALDI VR6K on-line 2U LCD | ORVALDI VR10K on-line 2U LCD | |||||
| Číslo dílu | VGAR6K | VGAR10K | |||||
| Maximální výkon | 6000VA / 6000W | 10000VA / 10000W | |||||
| Vstup | |||||||
| Vstupní napětí | 110-300VAC při zatížení 0-60% 140-300VAC při zatížení 60-80% 176-300VAC při zatížení 80-100% |
||||||
| Vstupní frekvence | 46~54Hz nebo 56~64Hz | ||||||
| Faktor výkonu | >0.99 při 100% zatížení | ||||||
| Výstup | |||||||
| Výstupní napětí | 208, 220, 230, 240VAC (uživatelsky programovatelné) | ||||||
| Výstupní frekvence (bateriový režim) | 50Hz ± 0.1Hz nebo 60Hz ± 0.1Hz | ||||||
| Crest Factor (špičkový faktor) | 3:1 | ||||||
| Harmonické zkreslení | ≦ 1 % při lineárním zatížení, ≦ 4 % při nelineárním zatížení (100% zatížení) | ||||||
| Přepínací čas | 0 ms (pod 10 ms v ECO režimu) | ||||||
| Výstupní průběh | Čistá sinusovka | ||||||
| Účinnost (AC režim) | 94% | ||||||
| Účinnost (bateriový režim) | 93% | ||||||
| Baterie | |||||||
| Typ a počet | 16-20 kusů, kapacita závisí na požadované době provozu na baterie | ||||||
| Nabíjecí napětí (Float) | 218.4VDC ± 1% pro 16 baterií | ||||||
| Nabíjecí proud | 4A | ||||||
| Informace na LCD displeji | Režim provozu, úroveň zatížení, stav nabití baterie, vstupní/výstupní napětí, doba provozu na baterie, varování a chyby. | ||||||
| Alarmy | |||||||
| Bateriový režim | Pípání každé 4 sekundy | ||||||
| Nízký stav baterie | Pípání každou sekundu | ||||||
| Přetížení | Dvě pípnutí za sekundu | ||||||
| Porucha | Nepřetržité pípání | ||||||
| Rozměry | |||||||
| Vnější [mm] | 438 x 88 x 600 | ||||||
| Hmotnost [kg] | 17 | 20 | |||||
| Prostředí | |||||||
| Teplota a vlhkost | 0-95 % (nekondenzující), 0-40°C (životnost baterie se zkracuje při provozních teplotách nad 25°C) | ||||||
| Hladina hluku | pod 55 dB ve vzdálenosti 1 m | ||||||
| Komunikace | |||||||
| USB/RS232 | Standardní | ||||||
| SNMP/AS400 | Volitelně | ||||||
